NTC传感器装配/系统

积层贴片陶瓷片式电容器

C1005X5R0J225K050BC

Capacitance=2.2μF
Edc=6.3V
T.C.=X5R

LxWxT:1x0.5x0.5mm
General

积层贴片陶瓷片式电容器

C1005X8R1E473M050BC

Capacitance=47nF
Edc=25V
T.C.=X8R

LxWxT:1x0.5x0.5mm
High Temp. (Up to 150ºC)

积层贴片陶瓷片式电容器

CGA2B2X7R1C154K050BA

Capacitance=0.15μF
Edc=16V
T.C.=X7R

LxWxT:1x0.5x0.5mm
General
AEC-Q200

积层贴片陶瓷片式电容器

CGA4J1X7R1H475K125AE

Capacitance=4.7μF
Edc=50V
T.C.=X7R

LxWxT:2x1.25x1.25mm
Soft termination
AEC-Q200

直流链路用电力电容器 (MKK 长方体)

B25645A1118K003

1050µF, 1250V

205mm(L) x 90mm(W) x 170mm(H)

SMD/SMT 电感器(线圈)

B82432C1154K000

L=150μH
Rated current=0.13A

4.5mm x 3.2mm [EIA 1812]

SMD/SMT 电感器(线圈)

VLS3012HBX-1R5M

L=1.5μH
Rated current=4.9A

L x W x T :
3 x 3 x 1.2mm

贴片压敏电阻/陶瓷瞬时电压抑制器

AVRSP16C270KT431N

Maximum continuous voltage [DC]=19V

Maximum Clamping Voltage (8/20uS)=42V

NTC元件

B57862L0102H000

Nominal Resistance=1kΩ

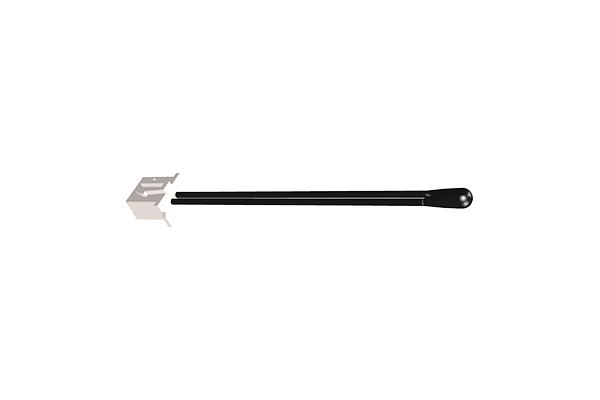

NTC传感器装配/系统

B57020M2502A001

Nominal Resistance=5kΩ

Nominal Resistance Tolerance=±2.0%
