超小型POL转换器μPOL 选型指南

TDK μPOL是一款超小型、高效率的负载点（POL）转换器，非常适用于FPGA和ASIC等高性能LSI。其宽输入范围和I2C通信支持，适用于多种应用。此外，POL电源产品阵容支持1–200A，为FPGA和SoC提供高效且可靠的电源解决方案。

SERIES		FS3303	FS1703	FS140x		FS1003	FS160x		FS160xA		FS1006	FS1412	FS1525

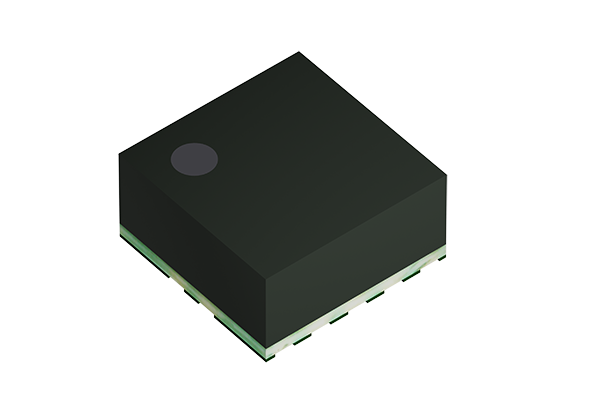

Illustrations
Package		LGA / 14PIN	LGA / 17PIN									LGA / 22PIN	LGA / 69PIN
Dimensions(mm)		2.5 × 2.5 × 1.21	3.3 × 3.3 × 1.47			3.3 × 3.3 × 1.35						4.9 × 5.8 × 1.56	6.8 × 7.65 × 3.75
Output Current (I_out)		3A	3A	3A to 6A	6A	3A	3A to 6A	6A	3A to 6A	6A	6A	12A	25A ~ 200A
Input Voltage (Vin)		2.75V to 3.3V for 2.5V 2.75V to 5.5V for 3.3V	4.5V to 5.5V	4.5V to 16V**		4.2V to 16V**					9V to 16V for 5V 4.75V to 16V for 3.3V	4.5V to 16V
Output Voltage (Vout)	5.00			FS1403-5000-		FS1003-0600-*	FS1603-5000-	FS1606-0600-*	FS1603A-5000-	FS1606A-0600-*	FS1006-5000-
	3.30	FS3303-0400-*	FS1703-3300-	FS1404-3300-			FS1604-3300-		FS1604A-3300-		FS1006-3300-
	2.50			FS1406-2500-			FS1606-2500-		FS1606A-2500-
	1.80			FS1406-1800-	FS1406-0600-*		FS1606-1800-		FS1606A-1800-			FS1412-0600-*	FS1525-0600-*
	1.50						FS1606-1500-		FS1606A-1500-
	1.20			FS1406-1200-			FS1606-1200-		FS1606A-1200-
	1.10			FS1406-1100-			FS1606-1100-		FS1606A-1100-
	1.05			FS1406-1050-			FS1606-1050-		FS1606A-1050-
	1.00			FS1406-1000-			FS1606-1000-		FS1606A-1000-
	0.90			FS1406-0900-
	0.80			FS1406-0800-
	0.75			FS1406-0750-
	0.70			FS1406-0700-
	0.60
	0.40
Evaluation Board		EV3303-0400-A 事前准备	EV1703-3300-A	EV1403-5000-A EV1404-3300-A	EV1406-0600-A	EV1003-0600-A	EV1603-5000-A EV1604-3300-A	EV1606-0600-A	EV1603A-5000-A EV1604A-3300-A	EV1606A-0600-A	EV1006-3300-A	EV1412-0600-A	EV1525-0800-25A EV1525-0800-50A
Operating Temperature		-40ºC to 125ºC
Mode of Control		ANALOG
Mode of Control			I²C
Telemetry						Vin/Vo/Io/Temp						Vin/Vo/Temp	Vin/Vo/Io/Temp

* 带分压器
** 在双电源配置中可用2.5V输入
