AC-DC电源

CUS-M系列

AC-DC电源

高性能
医疗和工业AC-DC电源
低电磁干扰

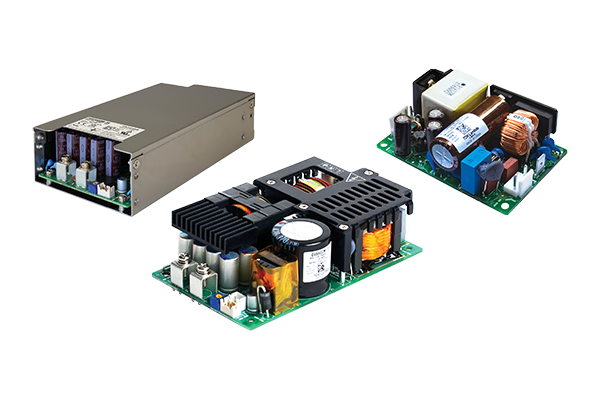

CUS-M系列开放式和封闭式AC-DC电源采用行业标准尺寸，可提供业界领先的功率密度，支持I类或II类（双重绝缘）输入。该系列采用创新拓扑设计，以实现卓越的电磁兼容性，提供最新的ITE和医疗安全认证，并且享有强有力保修支持。

型号	输出功率 (W)	输入电压 (VAC)	输出电压(VDC)
CUS30M	30 to 30.6	85 to 265	12, 15, 18, 24, 36, 48
CUS60M	30 to 60.3	85 to 265	5, 12, 15, 18, 24, 48
CUS100MB	80 to 100.8	85 to 265	5, 12, 15, 18, 24, 28, 36, 48
CUS100ME	100	85 to 264	12, 15, 18, 24, 28, 36, 48
CUS150M1	150 to 153.6	85 to 265	12, 18, 24, 36, 48
CUS150M	150	85 to 264	12, 15, 18, 24, 28, 36, 48
CUS200M	200.4 to 252	85 to 265	12, 18, 24, 36, 48
CUS250M	250	85 to 264	12, 15, 18, 24, 28, 36, 48
CUS350M	414 to 420	85 to 265	12, 18, 24, 36, 48
CUS400M	400	85 to 264	12, 15, 19, 24, 28, 36, 48
CUS500M1	500.4 to 504	85 to 265	12, 19, 24, 28, 32, 36, 48
CUS500M1/EF	500.4 to 504	85 to 265	12, 19, 24, 28, 32, 36, 48
CUS600M(1)	600 to 604.8	85 to 265	12, 19, 24, 28, 32, 36, 48
CUS600M(1)/EF	600 to 604.8	85 to 265	12, 19, 24, 28, 32, 36, 48
CUS800M	680.4 to 801.6	85 to 265	12, 24, 36, 48
CUS1000M	800.4 to 1000.8	85 to 265	12, 24, 36, 48
CUS1500M	1500 to 1536	85 to 265	12, 15, 24, 36, 48
